C-LAM HS/HM

FRP systems for concrete consisting of enhanced adhesion pultruded carbon laminate with epoxy resin.

image-1
image-1
image-1
image-1
image-1
image-1
image-1
image-1
System description Arrow dropdown

System description

FRP systems for concrete consisting of enhanced adhesion pultruded carbon laminate with epoxy resin.

C-LAM is an FRP strengthening system consisting of pultruded carbon fibre laminates, it is available in the HS High Resistance and HM High Modulus versions for flexural strengthening on any type of substrate. The strengthening work should be carried out on site and, after preparing the support correctly, involves impregnating the laminates with the specific epoxy resin.

SYSTEM ELEMENTS:

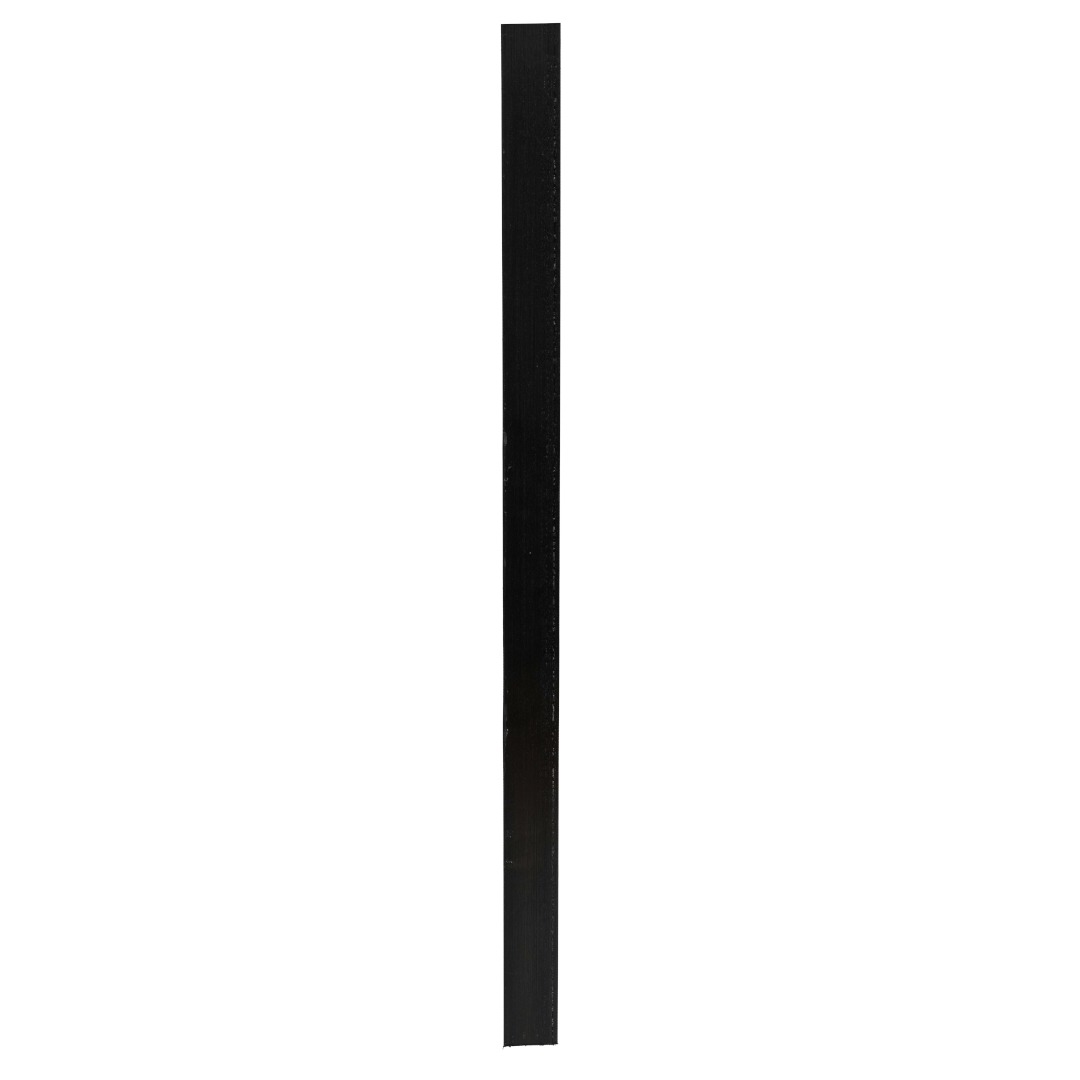

LAM HS

Pultruded carbon laminates.
Available in:
• H 50 mm, x 50 m reel
• H 100 mm x 50 m reel*.

LAM HM*

Pultruded carbon laminates.

Available in: • H 50 mm, x 50 m reel • H 100 mm x 50 m reel.

C-RESIN LAM

C-RESIN LAM

High adhesive capacity epoxy resin

for the application
of LAM HS and LAM HM laminates.

Applications

frp-carbonio-c-lam-hs-ruregold
  • Retrofitting and upgrading the static and anti-seismic behaviour of buildings in reinforced concrete.
  • Retrofitting and upgrading the static and anti-seismic behaviour of infrastructure in reinforced concrete.
  • Flexural strengthening of reinforced concrete beams.
  • Flexural strengthening of concrete beam and block floor joists.
  • Flexural strengthening of timber structures.
  • Flexural strengthening of steel structures.
  • Structural strengthening of concrete walls.
  • Increasing the bending capacity of concrete beam and block floor slabs.
